Pressure fittings

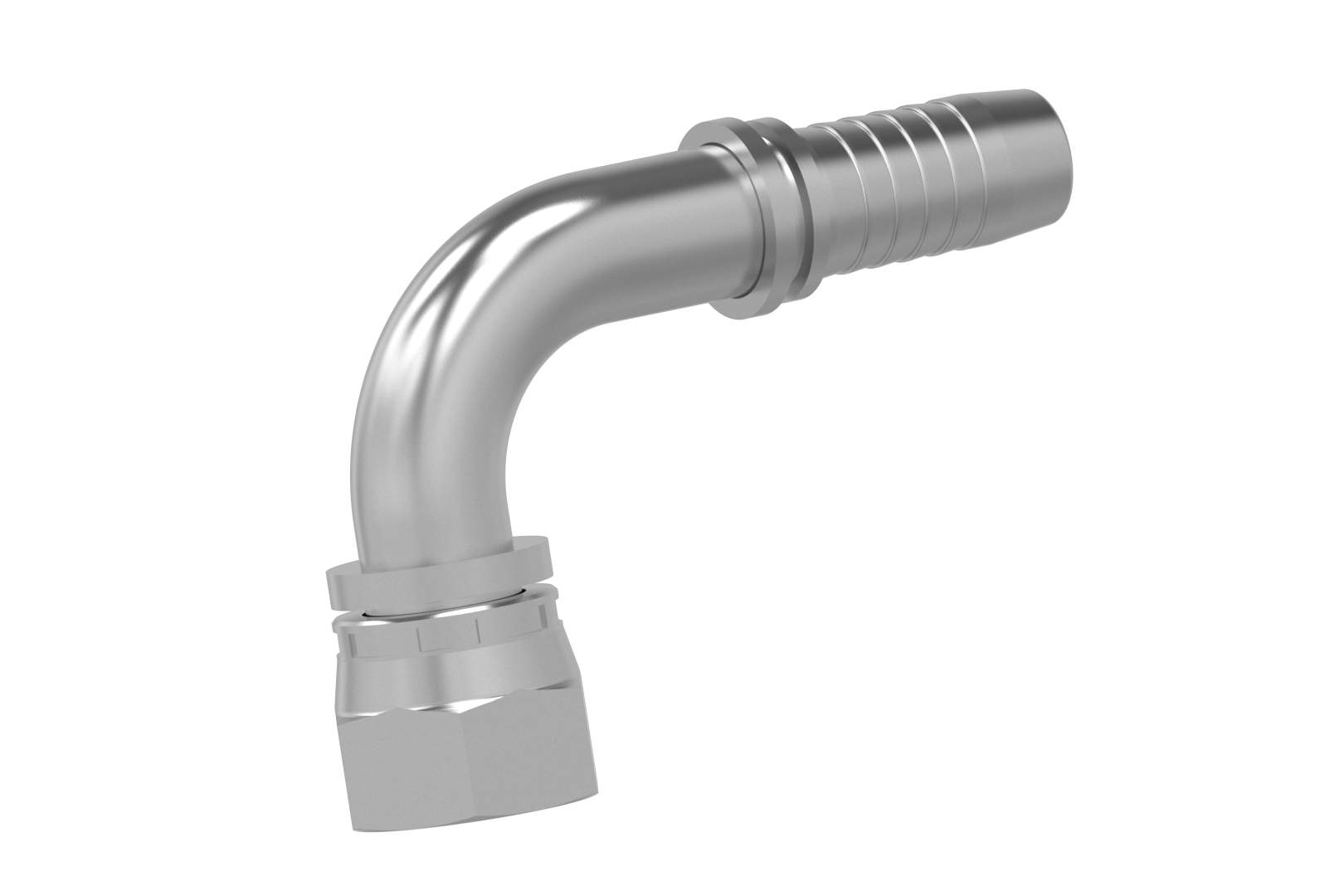

DKR 90°

Connection
Sealing head 60° outside cone with BSPP nut (G)

Standard
ISO 8434-6

Application
TE / SN / SC / SN-K / PTFE flexible tubes

Material
Steel

Surface protection
Zinc-electroplated

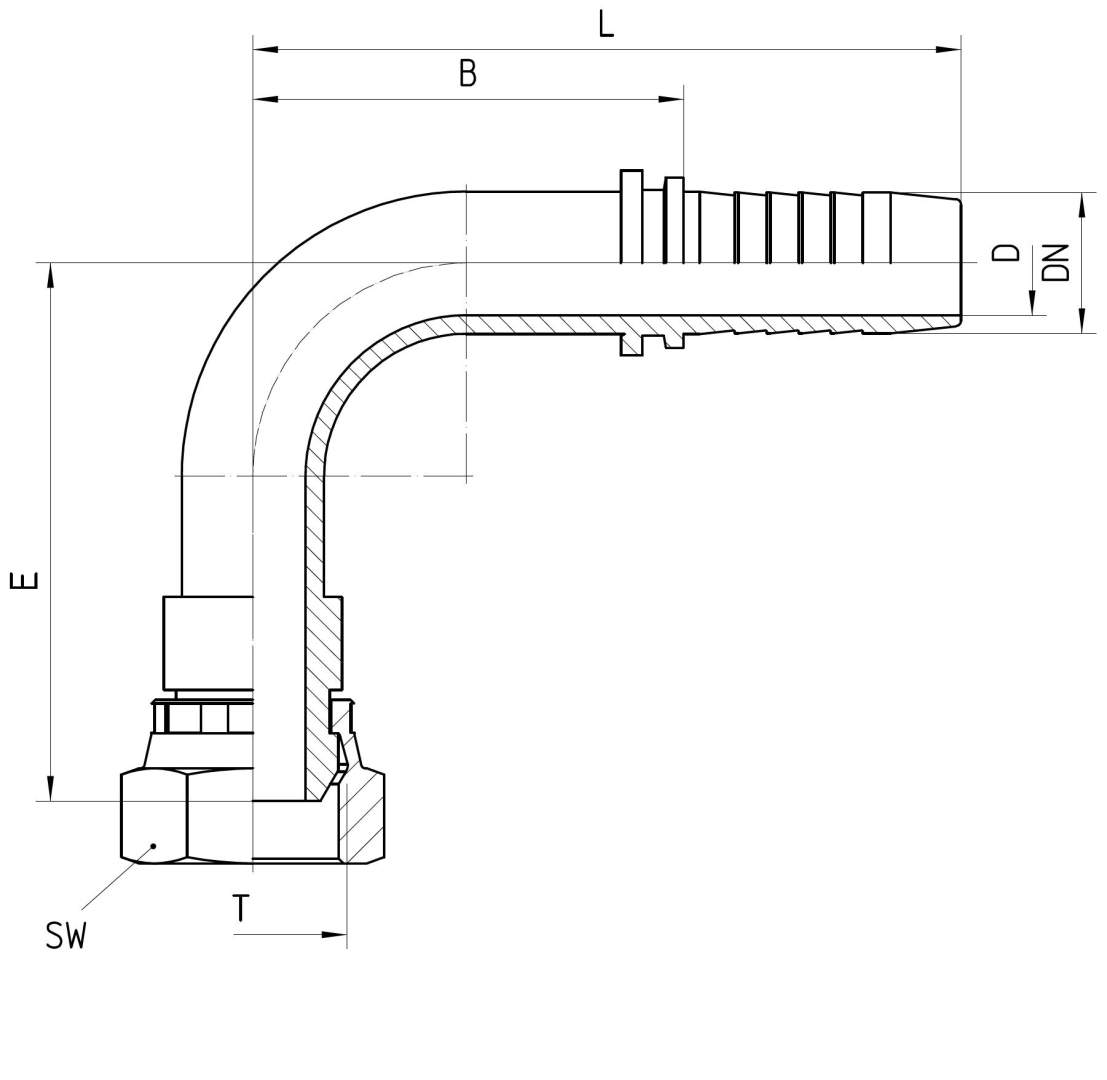

Order no. DN in mm T in inch SW in mm min. D in mm E±3 in mm B±3 in mm L±3 in mm
1.243-04-04 06 G 1/4 19 4,0 27 25 53
1.243-06-04 06 G 3/8 22 4,0 31 25 53
1.243-04-05 08 G 1/4 17 5,5 30 30 57
1.243-06-05 08 G 3/8 22 5,5 36 29 57
1.243-06-06 10 G 3/8 22 7,0 30 32 62
1.243-08-06 10 G 1/2 27 7,0 40 31 61
1.243-06-08 12 G 3/8 22 7,0 46 42 73
1.243-08-08 12 G 1/2 27 10,0 52 42 73
1.243-10-08 12 G 5/8 30 10,0 52 42 73
1.243-08-10 16 G 1/2 27 10,0 53 52 86
1.243-10-10 16 G 5/8 30 12,0 60 52 86
1.243-12-10 16 G 3/4 32 12,6 62 52 86
1.243-10-12 19 G 5/8 30 12,0 61 60 99
1.243-12-12 19 G 3/4 32 14,8 75 60 99
1.243-16-12 19 G 1 41 14,8 76 62 101
1.243-12-16 25 G 3/4 32 14,8 72 64 111
1.243-16-16 25 G 1 41 20,0 87 69 116
1.243-20-16 25 G 1 1/4 50 20,0 83 67 114
1.243-16-20 31 G 1 41 21,0 84 93 148
1.243-20-20 31 G 1 1/4 50 26,5 92 93 148
1.243-24-20 31 G 1 1/2 55 26,5 91 93 148
1.243-20-24 38 G 1 1/4 50 26,5 97 104 162
1.243-24-24 38 G 1 1/2 55 32,5 101 104 162
1.243-32-24 38 G 2 70 32,5 102 104 162
1.243-24-32 51 G 1 1/2 55 32,5 120 130 205
1.243-32-32 51 G 2 70 44,5 121 130 205
1.243-40-36 60 G 2 1/2 85 52,0 129 173 253
1.243-40-40 63 G 2 1/2 85 52,0 130 170 250
1.243-48-48 76 3 100 68,0 145 150 225

Product information last updated on 11.06.2019 12:00:09
