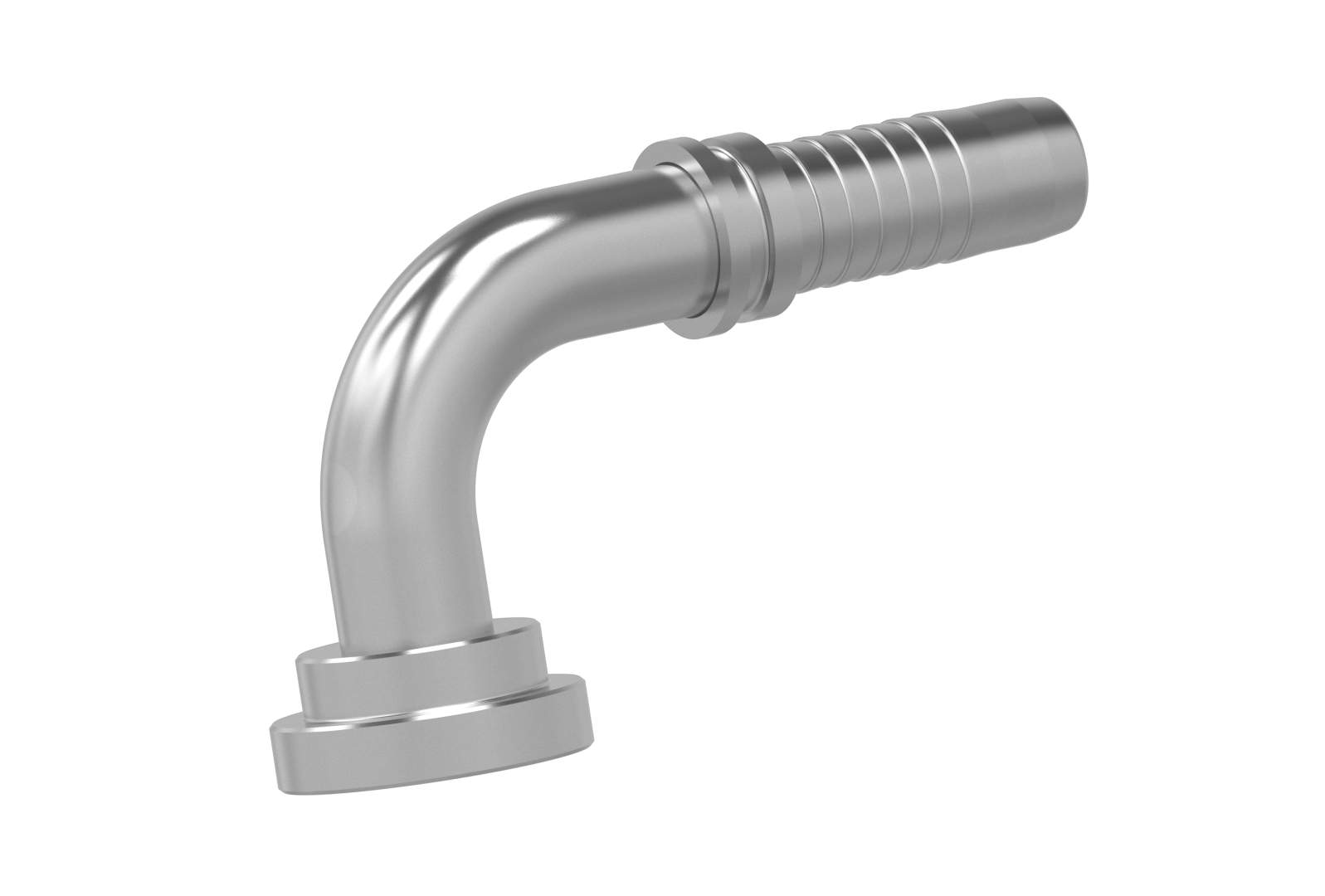

Connection | SAE-flange 3000PSI (L series) |
Standard | ISO 6162-1 |
Application | 3SPC / 4SP hoses / 4SH19 / 4SH25 |
Material | Steel |
Surface protection | Zinc-electroplated |

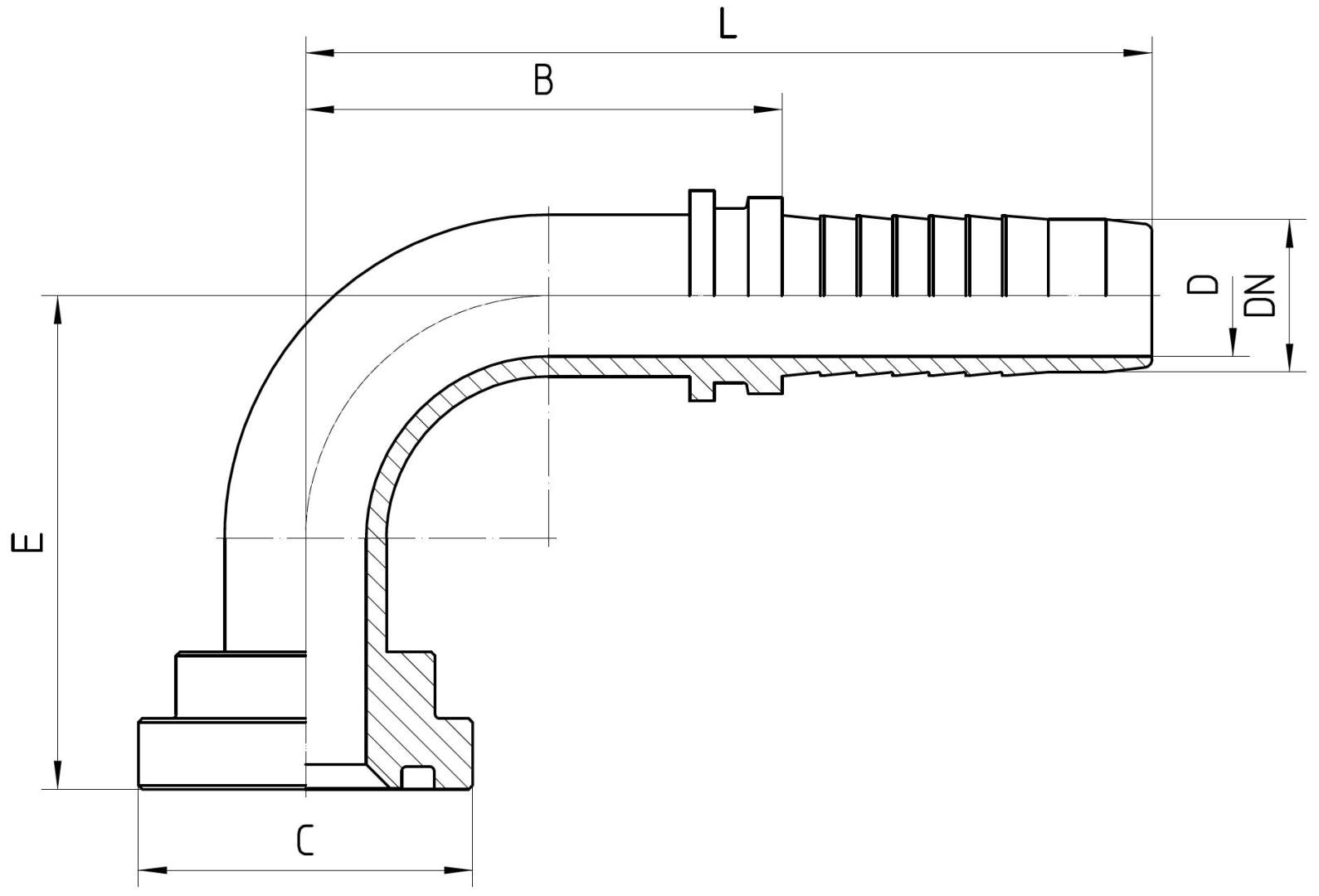

Order no. | DN in mm | flange in inch | C in mm | min. D in mm | E±3 in mm | B±3 in mm | L±3 in mm |
---|---|---|---|---|---|---|---|
4.470-08-08 | 12 | 1/2 | 30,2 | 9,0 | 42 | 42 | 80 |
4.470-12-08 | 12 | 3/4 | 38,1 | 9,0 | 41 | 42 | 80 |
4.470-08-10 | 16 | 1/2 | 30,2 | 12,0 | 54 | 52 | 94 |
4.470-12-10 | 16 | 3/4 | 38,1 | 12,0 | 54 | 52 | 94 |
4.470-08-12 | 19 | 1/2 | 30,2 | 13,5 | 60 | 60 | 106 |
4.470-12-12 | 19 | 3/4 | 38,1 | 14,8 | 58 | 60 | 106 |
4.470-16-12 | 19 | 1 | 44,5 | 14,8 | 60 | 61 | 107 |
4.470-12-16 | 25 | 3/4 | 38,1 | 19,9 | 69 | 65 | 120 |
4.470-16-16 | 25 | 1 | 44,5 | 19,9 | 69 | 65 | 120 |
4.470-20-16 | 25 | 1 1/4 | 50,8 | 19,9 | 69 | 65 | 120 |
