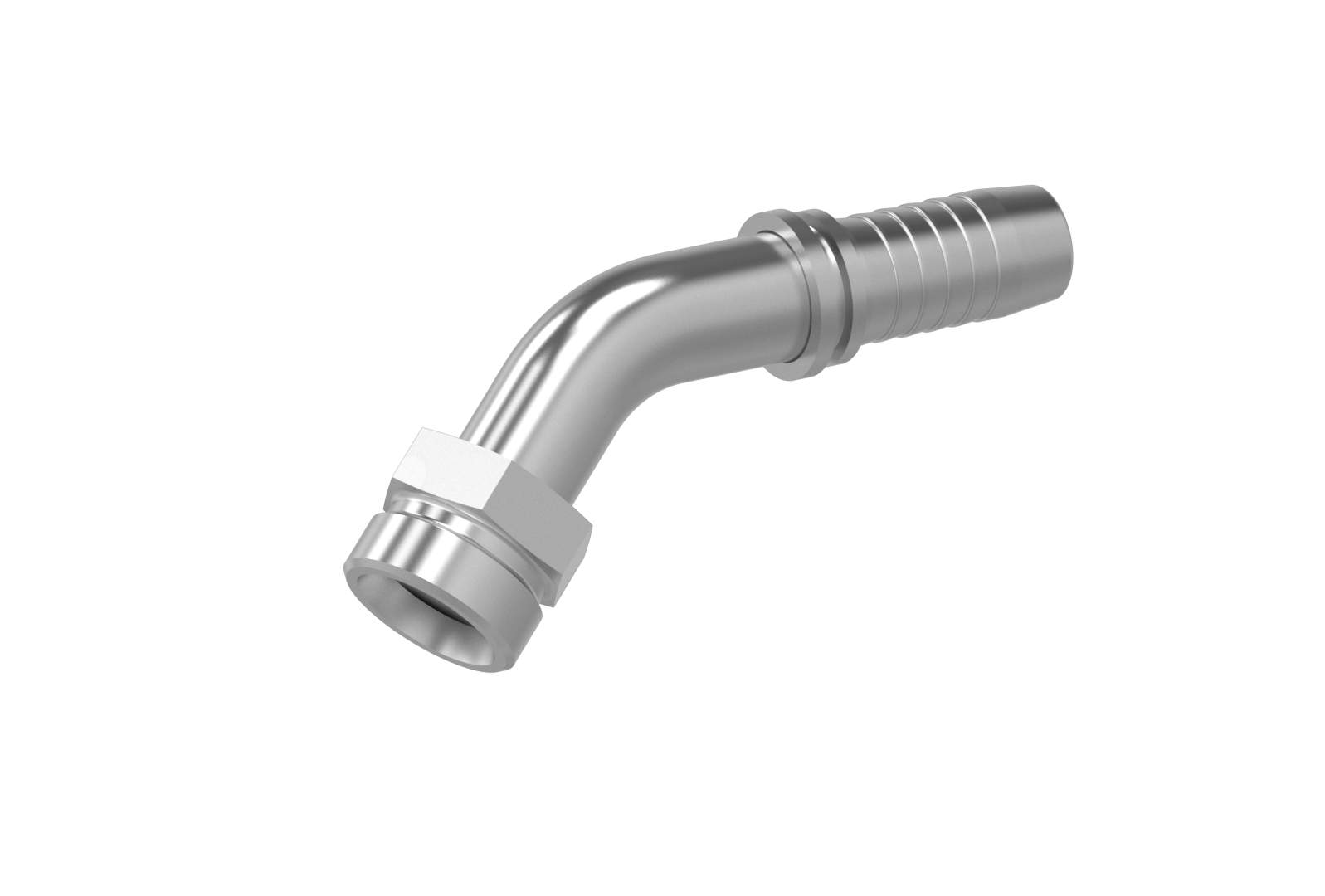

CES 45°

Connection Metric male thread 24° with inner cone, dan pipe connection S series
Standard ISO 8434-1
Application TE / SN / SC / SN-K / PTFE flexible tubes
Material Steel
Surface protection Zinc-electroplated

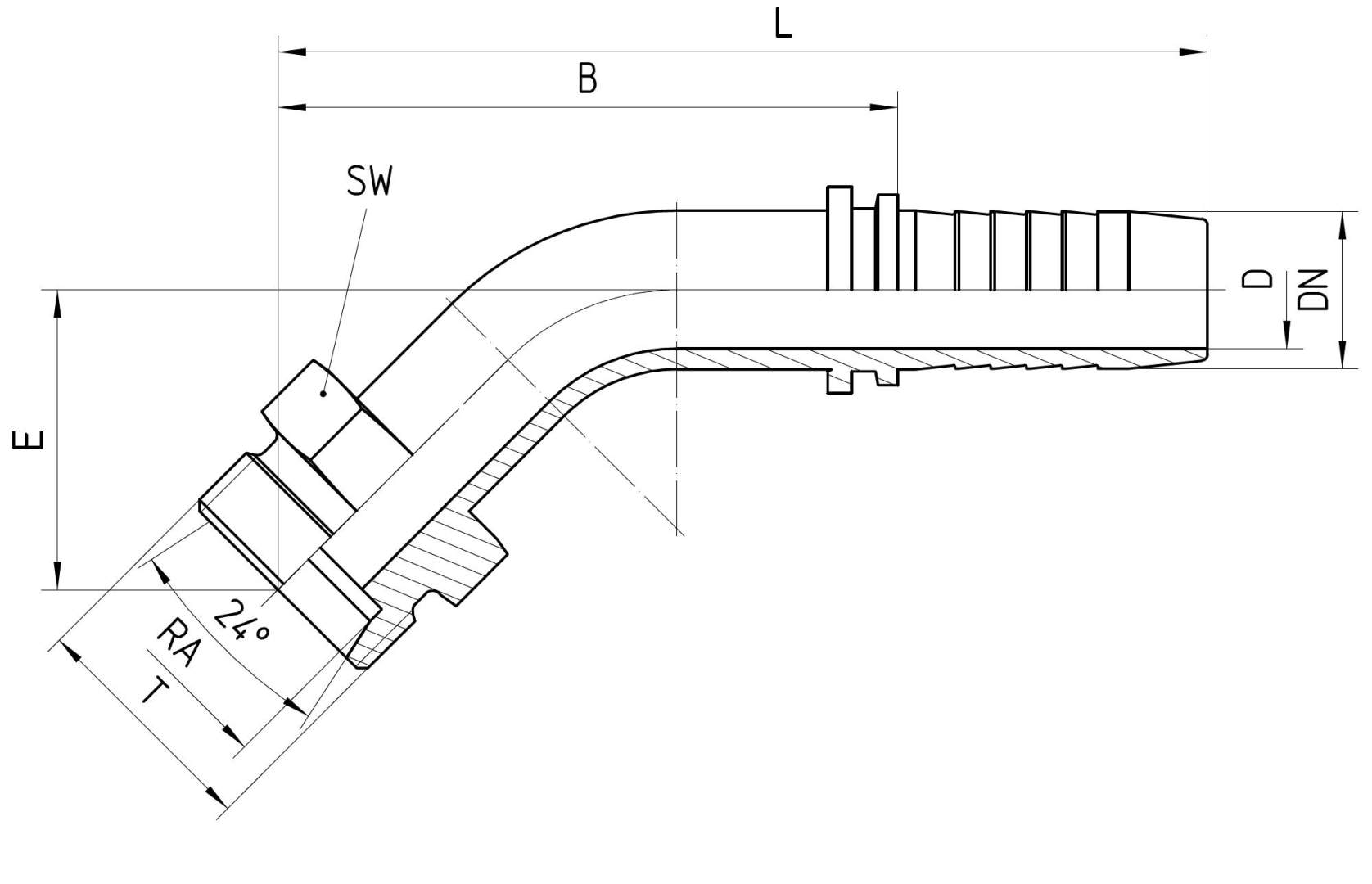

Order no. DN in mm RA T SW in mm min. D in mm E±3 in mm B±3 in mm L±3 in mm
1.185-03-04 06 8S M 16x1.5 17 4,0 21 42 69
1.185-04-04 06 10S M 18x1.5 19 4,0 20 41 68
1.185-05-04 06 12S M 20x1.5 22 4,0 21 42 69
1.185-04-05 08 10S M 18x1.5 19 5,5 20 45 72
1.185-05-05 08 12S M 20x1.5 22 5,5 22 44 71
1.185-06-05 08 14S M 22x1.5 22 5,5 23 46 73
1.185-05-06 10 12S M 20x1.5 22 7,0 21 43 73
1.185-06-06 10 14S M 22x1.5 22 7,0 22 44 74
1.185-08-06 10 16S M 24x1.5 24 7,0 24 48 78
1.185-06-08 12 14S M 22x1.5 22 10,0 28 56 87
1.185-08-08 12 16S M 24x1.5 24 10,0 27 55 86
1.185-10-08 12 20S M 30x2.0 30 10,0 29 55 86
1.185-08-10 16 16S M 24x1.5 24 12,6 32 68 102
1.185-10-10 16 20S M 30x2.0 30 12,6 33 70 104
1.185-12-10 16 25S M 36x2.0 36 12,6 35 71 105
1.185-10-12 19 20S M 30x2.0 30 14,8 41 82 121
1.185-12-12 19 25S M 36x2.0 41 14,8 41 82 121
1.185-16-12 19 30S M 42x2.0 46 14,8 40 82 121
1.185-12-16 25 25S M 36x2.0 36 16,6 42 90 136
1.185-16-16 25 30S M 42x2.0 46 21,1 45 92 138
1.185-20-16 25 38S M 52x2.0 55 21,1 47 93 139
1.185-16-20 31 30S M 42x2.0 46 20,0 52 120 174
1.185-20-20 31 38S M 52x2.0 55 26,5 59 126 180
1.185-20-24 38 38S M 52x2.0 55 26,1 56 126 183
