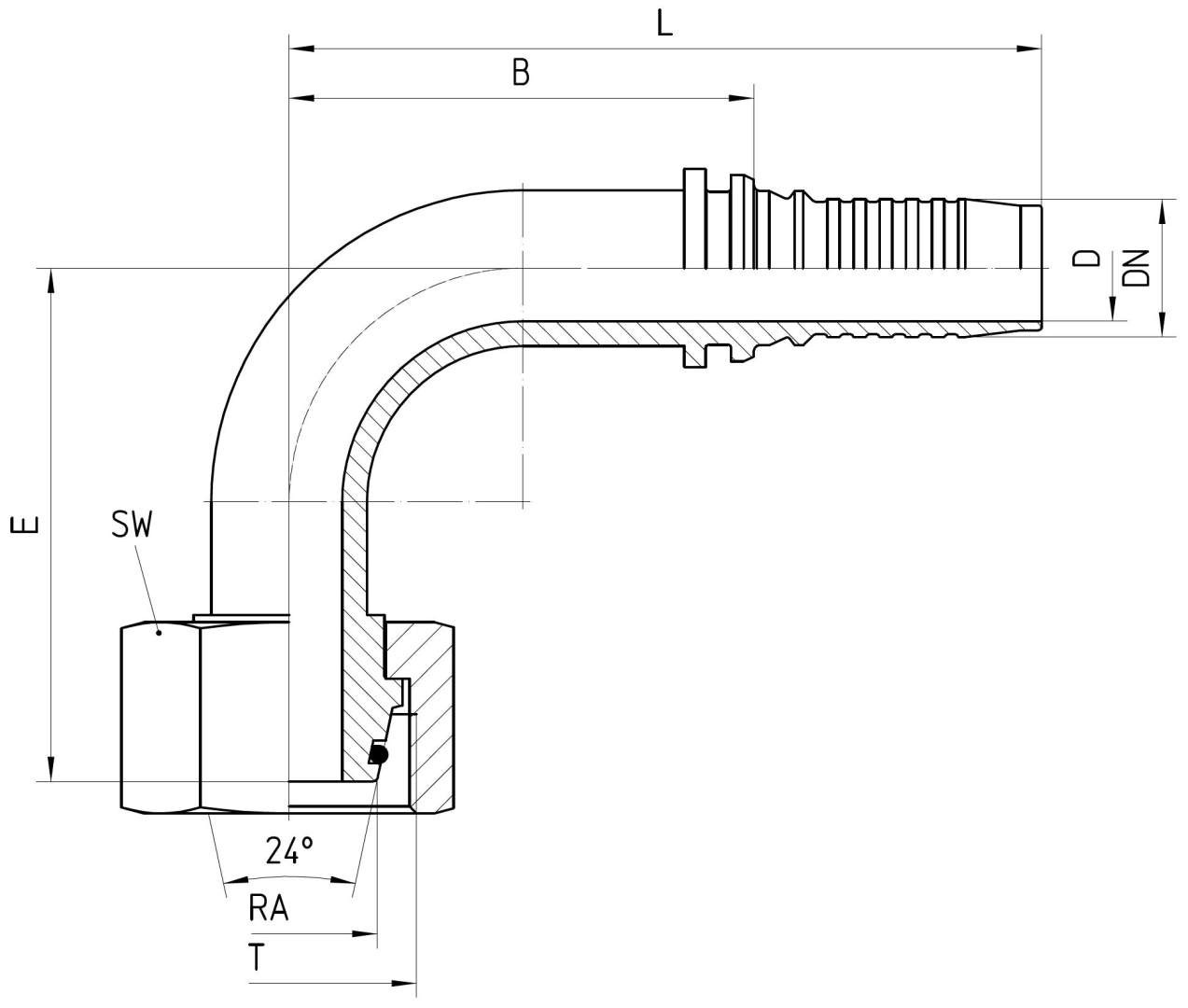

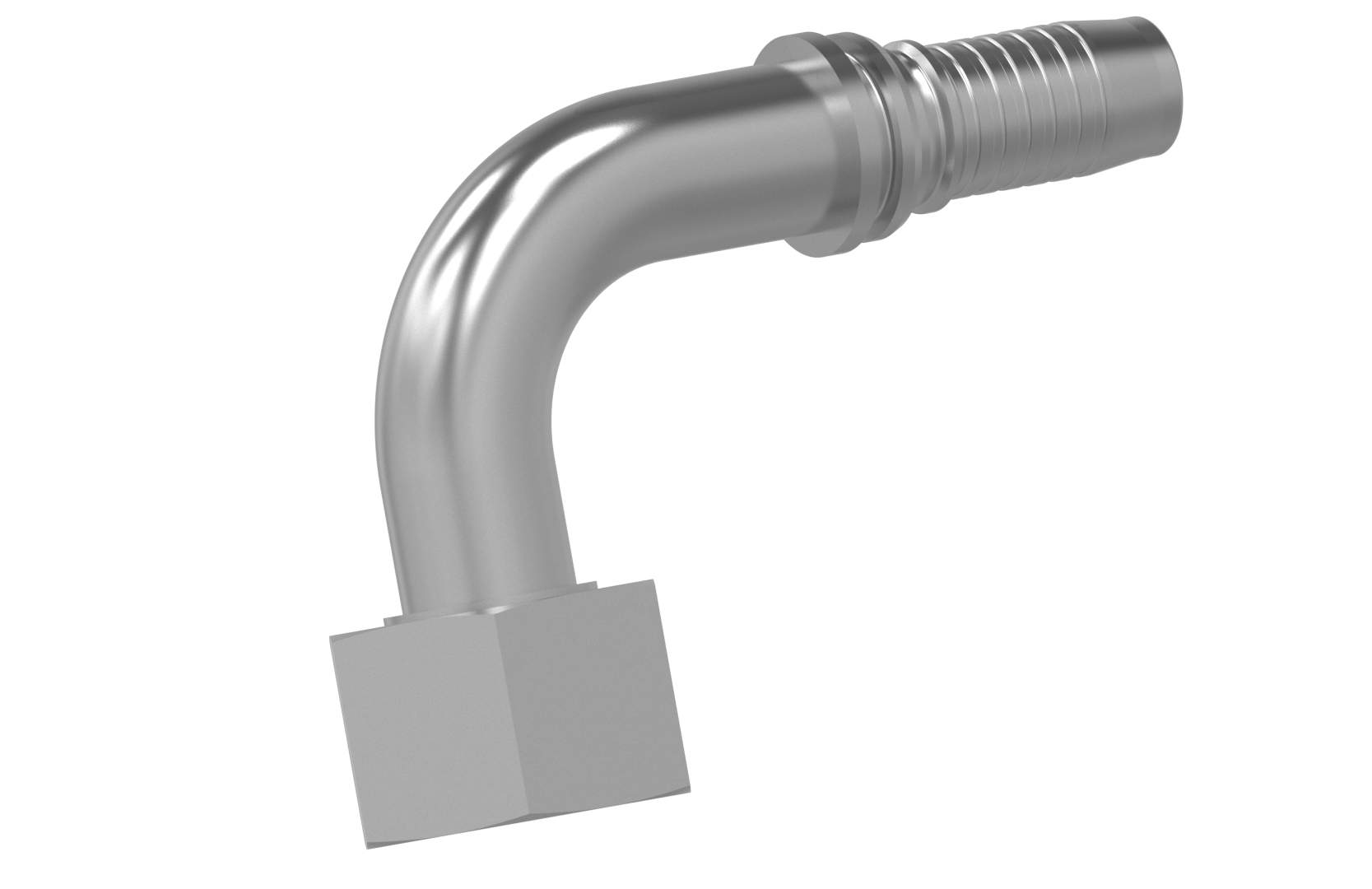

Connection | Sealing head 24° outside cone O-ring sealing with metric nut S series |
Standard | ISO 8434-1 |
Application | 4SH flexible tubes |
Material | Steel |
Surface protection | Zinc-electroplated |
Note | * changed outline to improve the safety, therefore measurements differ from standard systems |
Accessories | 3437309 |
Order no. | DN in mm | RA | T | SW in mm | min. D in mm | E±3 in mm | B±3 in mm | L±3 in mm | Note |
---|---|---|---|---|---|---|---|---|---|
5.089-10-12 | 19 | 20S | M 30x2,0 | 36 | 13,0 | 68 | 60 | 101 | |
5.089-12-12/SW46 | 19 | 25S | M 36x2,0 | 46 | 14,8 | 70 | 60 | 101 | |
5.089-16-12 | 19 | 30S | M 42x2,0 | 50 | 14,8 | 67 | 60 | 101 | |
5.089-12-16/SW46 | 25 | 25S | M 36x2,0 | 46 | 15,0 | 76 | 81 | 133 | * |
5.089-16-16 | 25 | 30S | M 42x2,0 | 50 | 20,0 | 80 | 82 | 131 | * |
5.089-20-16 | 25 | 38S | M 52x2,0 | 60 | 20,0 | 75 | 81 | 133 | * |
5.089-16-20 | 31 | 30S | M 42x2,0 | 50 | 20,0 | 108 | 102 | 171 | |
5.089-20-20 | 31 | 38S | M 52x2,0 | 60 | 25,0 | 108 | 102 | 171 | |
5.089-20-24 | 38 | 38S | M 52x2,0 | 60 | 25,0 | 108 | 121 | 190 |
