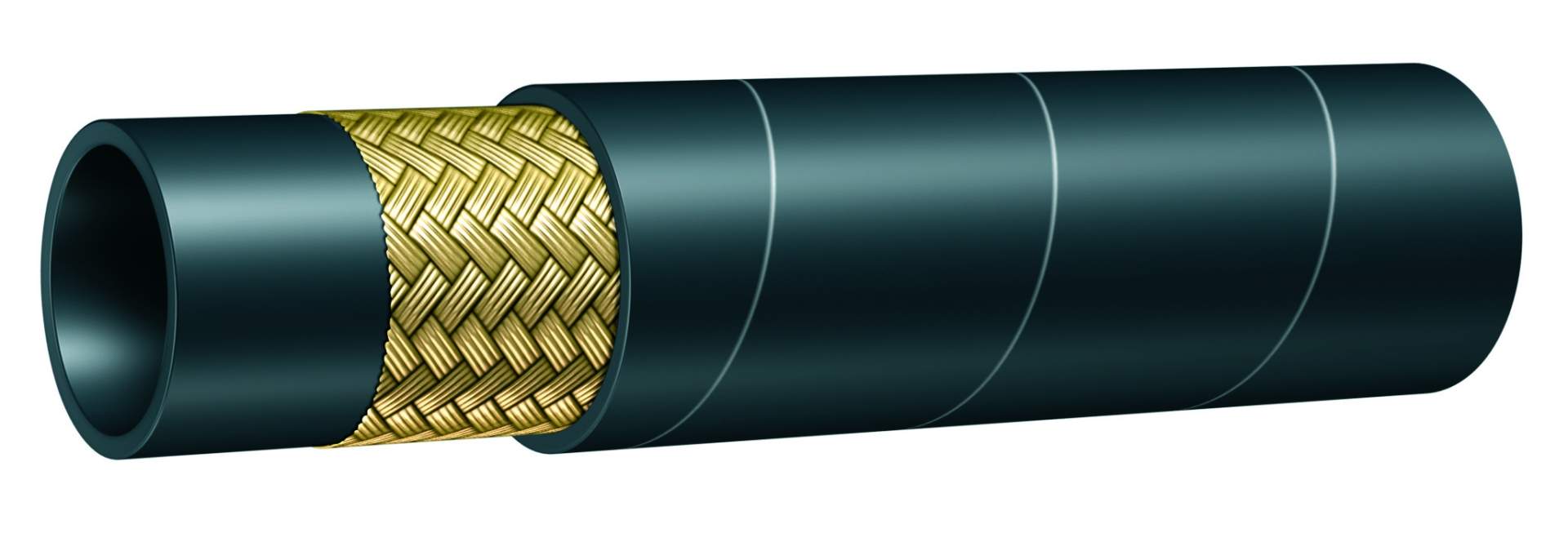

| Tube | oil resitsant synthetic rubber |
| Reinforcement | 1 high tensile steel wire netting |
| Cover | synthetic rubber with high temperature, ozone and abrasion resistance |
| Temperature | -40°C to +100°C |
| Standard |
Compact hydraulic hose construction exceeds EN 857 1SC, Impulse tested up to 500.000 cycles (acc. to ISO 6803) Tested according to John Deere parameters, bending radius and working pressure are reduced |
| Order no. | DN in mm | internal Ø in mm | external Ø in mm | reinforcement Ø in mm | working pressure in bar | burst pressure in bar | min.bending radius R in mm | weight in kg/m |
|---|---|---|---|---|---|---|---|---|
| 18-04 | 6 | 6,4 | 11,8 | 10,0 | 210 | 1160 | 50 | 0,18 |
| 18-05 | 8 | 7,9 | 13,6 | 11,6 | 210 | 1000 | 55 | 0,22 |
| 18-06 | 10 | 9,5 | 16,5 | 13,7 | 210 | 920 | 65 | 0,29 |
| 18-08 | 12 | 12,7 | 19,0 | 16,9 | 210 | 840 | 80 | 0,35 |
