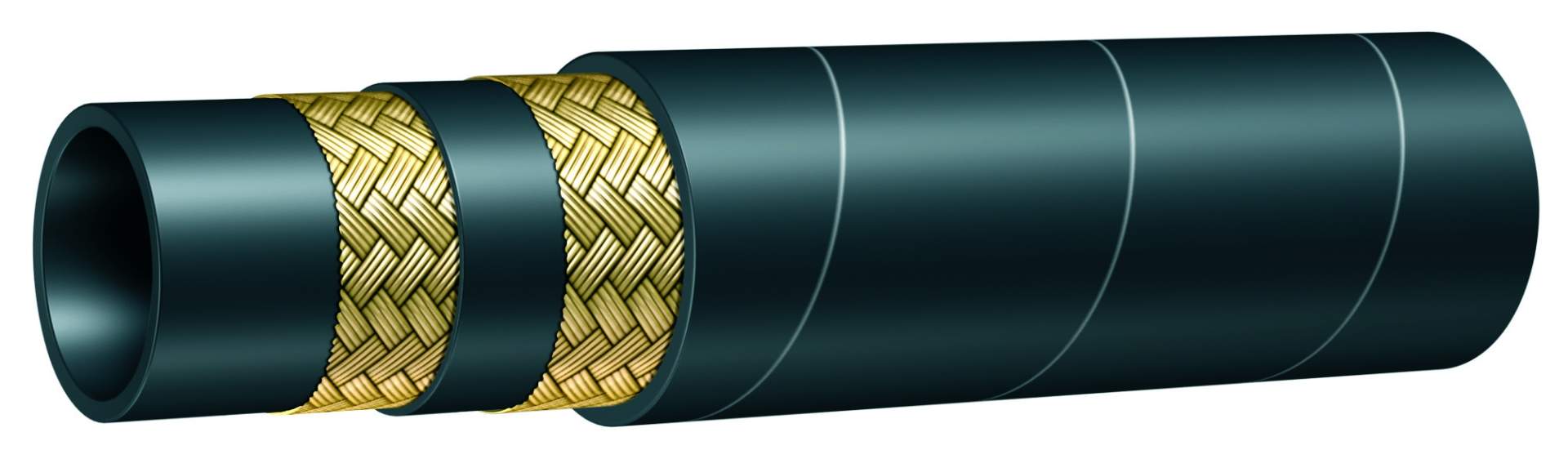

| Tube | oil resitsant synthetic rubber |
| Reinforcement | Two braids of high tensile steel wire |
| Cover | synthetic rubber with high abrasion, ozone, weather resistance |
| Ozone resistance | according to ISO 7326:2016, method 4, 72 hours |
| Abrasion value | 0,5g test according to EN 853 (25N/2000 cycles) |
| Temperature | -40°C to +100°C |
| Standard | DIN EN 853; SAE 100 R2S |
| DN 6 bis DN 25 | Please use our high-quality hose lines of the 2SC variant for these nominal diameters. |
| Order no. | DN in mm | internal Ø in mm | external Ø in mm | reinforcement Ø in mm | working pressure in bar | burst pressure in bar | min.bending radius R in mm | weight in kg/m |
|---|---|---|---|---|---|---|---|---|
| 21-20 | 31 | 31,8 | 48,3 | 44,5 | 125 | 500 | 420 | 2,30 |
| 21-24 | 38 | 38,1 | 54,6 | 50,8 | 90 | 360 | 500 | 2,70 |
| 21-32 | 51 | 50,8 | 67,3 | 63,5 | 80 | 320 | 630 | 3,50 |
| 21-36 | 60 | 60,0 | 71,5 | 68,8 | 90 | 360 | 650 | 2,66 |
| 21-40 | 63 | 63,5 | 77,5 | 73,2 | 70 | 280 | 760 | 3,96 |
| 21-48 | 76 | 76,2 | 90,5 | 87,8 | 45 | 180 | 900 | 3,18 |
